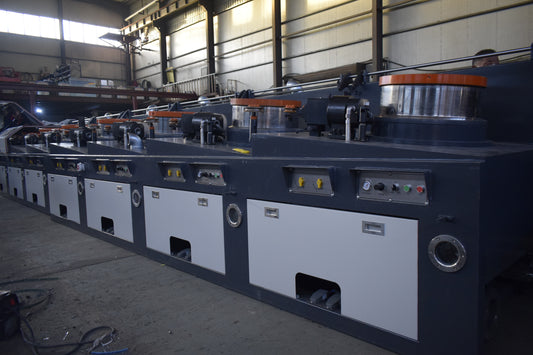

Collection: Straight Line Wire Drawing Machine
Straight line wire drawing machine is one of the common metal wire processing equipment. Straight-through wire drawing machine can be used for drawing high, medium and low carbon steel wire, stainless steel wire, copper wire, alloy copper wire, aluminum alloy wire, etc. Accurate metering with an error of 0.1%; automatic deceleration and parking at fixed length; wire break detection and automatic parking; forward and reverse jogging of any reel and left and right linkage; display of various fault information and processing information; and monitoring of various motion information.
|
Model
|
Unit
|
LZ400
|
LZ560
|
LZ600
|
LZ800
|
|
Capstan diameter
|
mm
|
400
|
560
|
600
|
800
|
|
Drawing dies
|
Times
|
9
|
9
|
9
|
9
|
|
Inlet wire diameter
|
mm
|
Φ2.5-4.5
|
Φ5.5-6.5
|
6.5-8.0
|
8.0-10
|
|
Outlet wire diameter
|
mm
|
Φ0.8-1.4
|
Φ1.6-2.0
|
Φ2.0-3.0
|
Φ2.8-3.5
|
|
Drawing speed
|
m/s
|
12-18
|
10-15
|
8-12
|
8-10
|
|
Total reduction rate
|
%
|
90.32
|
90.53
|
90.53
|
90.53
|
|
Motor power
|
Kw
|
7.5-15
|
22-37
|
22-37
|
37-75
|
