Collection: 3-6mm Construction Wire Mesh Welding Machine

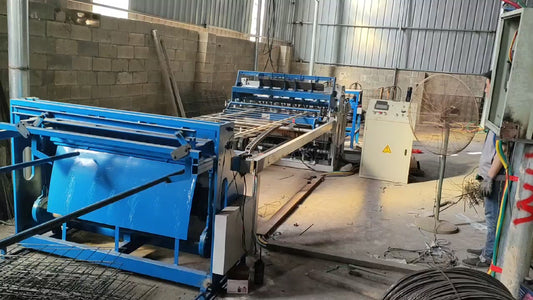

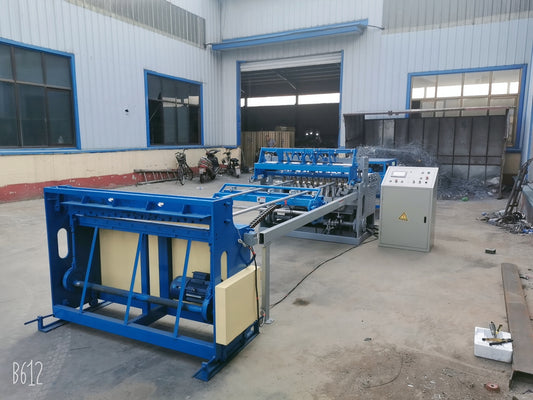

Wire mesh welding machine adopts power electronic synchronization technology, and the sub-control welding and welding time are controlled by digital circuits, with high control accuracy, stable performance and firm solder joints. Line wire feeding by coil wire,cross wire feeding by pre cut wire.The pulling net adopts elastic pull rod and mesh size positioning device, the hole size can be fine-tuned, and the size can be adjusted arbitrarily within the specified range. The product can be in rolls or in panel.
|
2500mm
|
2000mm
|
1500mm
|
1500mm
|
|
Mesh size
|
50-200mm
|
100-250mm
|
50-200mm
|
|
Wire diameter
|
3-6mm
|
|
Welding electrodes
|
48
|
24
|
31
|
|
Welding speed
|
0-90times/min
|
|
Voltage
|
380V-440V(customized)
|
|
Welding transformer
|
6*150KVA
|
3*150KVA
|
4*150KVA
|
|
Weight
|
3.8T
|
2.8T
|
3T
|
|
Overall size
|
3.2*1.5*1.7m
|
3.2*1.5*1.7m
|
2.2*1.5*1.5m
|
|
Cross wire form
|
Pre-Straightening and cutting wire
|
|
Line wire form
|
In coil/pre-cut
|
