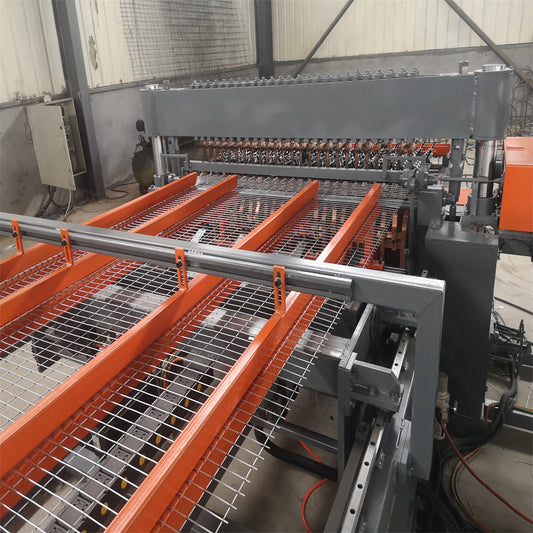

Collection: Chicken Cage Wire Mesh Welding Machine
Chicken cage steel wire mesh welding machine adopts power electronic synchronous control technology, and the welding time and sub-control welding are composed of digital integrated circuits, with high control accuracy, stable performance, firm solder joints, and no burn marks.
The welding speed is fast, and the operation is simple and easy to learn.
Line wire is automatic feeding by coil wire,and cross wire is feeding with pre-cut wire automatic falling to ensure that the length of the cross wire is uniform and the edges are neat, without cutting edges.
It is equipped with a top mesh reverse wire welding machine to perform reverse wire welding at the online welding gantry. Only one person is required to operate the whole process.
|
Model
|
KST-1200H
|
KST-1600H
|
KST-1200H+
|
KST-1600H+
|
|
Line wire dia(coil)
|
2-4mm
|
|
Cross wire dia(Pre-cut)
|
2-4mm
|
|
Line wire space
|
50-200mm
|
25-200mm
|
|
Cross wire space
|
12.5-200mm
|
|
Max.mesh width
|
1.2M
|
1.6M
|
1.2M
|
1.6M
|
|
Welding points
|
25Pcs
|
32Pcs
|
49Pcs
|
65Pcs
|
|
Air cylinder
|
25Pcs
|
32Pcs
|
17Pcs
|
22Pcs
|
|
Welding transformer
|
125Kva*3Pcs
|
125Kva*4Pcs
|
125Kva*5Pcs
|
125Kva*6Pcs
|
|
Max. welding speed
|
120-150Times/Min
|
|
Weight
|
5.2T
|
6.5T
|
5.8T
|
7.2T
|
